TCMLW

Description:

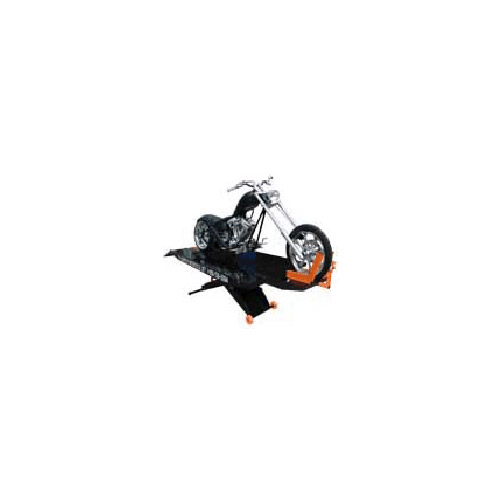

48" Wide Motorcycle Lift
Everything included w/ TCML +
Side extension Kit
Expanding Overall Width To 48"
Making Max. Table Size: 48: x 110"

Specs:

Maximum Capacity: 1,500 lbs.
Table Length w/ Rear Approach Ramp: 125" (w/ Adj. Front Ext.)
Table Length w/out Rear Approach Ramp: 84" (w/out Adj. Front Ext.)
Adjustable Front Extension: 84" (Table), 97" (Stage 1), 110" (Stage 2)
Stage 1 Extended Length w/ Rear Approach Ramp: 117" (w. Adj. Front Ext.)
Stage 1 Extended Length w/out Rear Approach Ramp: 97" (w. Adj. Front Ext.)
Stage 2 Extended Length w/ Rear Approach Ramp: 125" (w. Adj. Front Ext.)
Stage 2 Extended Length w/out Rear Approach Ramp: 110" (w. Adj. Front Ext.)
Drop Out Tail Dimensions: 14" x 21"
Removable Approach Ramp Length: 20"
TCML Width w/out Side Extensions: 24"
TCML Width w/ Side Extensions: 48"
Safety Lock Heights To Top Of Table:
19.5", 21.75", 23.5",
25", 27", 28.5", 30"
Maximum Rise: 33"
Lowered Height: 7"
Work Surface w/out Side Extensions (TCML): 24" x (84" - 110")
Work Surface w/ Side Extensions (TCMLW): 48" x (84" - 110")
Included Service Jack: Lifts 15", Lowers 3.5"
1,000 LB. Capacity
Air requirements: 90 psi
Shipping Weight TCML (Approx.) 500 LBS.
Shipping Weight TCMLW (Approx.): 625 LBS.
