TCML

TCLM

Description:

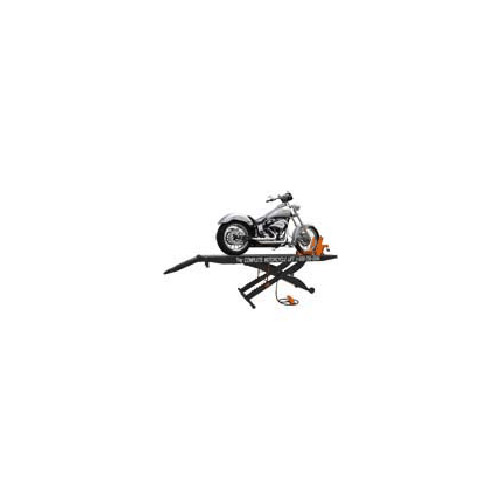

24" Wide Motorcycle Lift
Adjustable Front Extension
Front Vise Clamp
Drop Out Tail
Service Jack
7 Locking Positions
Foot Pedal Operation

Specs:

Maximum Capacity: 1,500 lbs.

Table Length
w/ Rear Approach Ramp: 125" (w/ Adj. Front Ext.)

Table Length w/out Rear Approach Ramp: 84" (w/out Adj. Front Ext.)

Adjustable Front Extension: 84" (Table), 97" (Stage 1), 110" (Stage 2)

Stage 1 Extended Length w/ Rear Approach Ramp: 117" (w. Adj. Front Ext.)

Stage 1 Extended Length w/out Rear Approach Ramp: 97" (w. Adj. Front Ext.)

Stage 2 Extended Length w/ Rear Approach Ramp: 125" (w. Adj. Front Ext.)

Stage 2 Extended Length w/out Rear Approach Ramp: 110" (w. Adj. Front Ext.)

Drop Out Tail Dimensions: 14" x 21"

Removable Approach Ramp Length: 20"

TCML Width w/out Side Extensions: 24"

TCML Width w/ Side Extensions: 48"

Safety Lock Heights To Top Of Table:

19.5", 21.75", 23.5",
25", 27", 28.5", 30"

Maximum Rise: 33"

Lowered Height: 7"

Work Surface w/out Side Extensions (TCML): 24" x (84" - 110")

Work Surface w/ Side Extensions (TCMLW): 48" x (84" - 110")

Included Service Jack: Lifts 15", Lowers 3.5" 1,000 LB. Capacity

Air requirements: 90 psi

Shipping Weight TCML (Approx.) 500 LBS.

Shipping Weight TCMLW (Approx.): 625 LBS.
