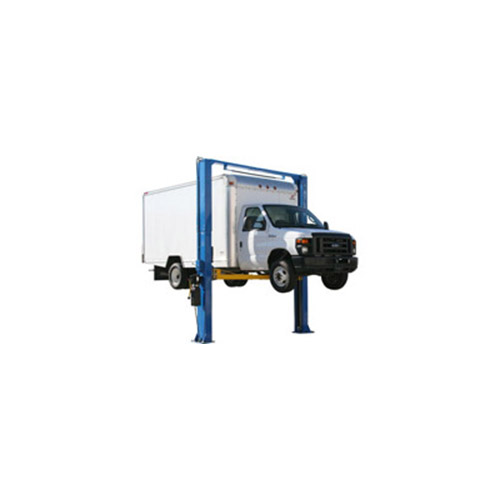

Atlas PV-15P

Description:

The Atlas PV-15P is a commercial-grade lift designed to accommodate both long wheelbase trucks and passenger cars. The distance between the symmetrical columns is almost 123" with a drive-thru space of 109". The extra distance between the symmetrical columns will allow the widest of vehicles to be lifted. The increased length of the symmetrical arms coupled with the additional height of the included peg style truck adapter set allows the operator to safely raise long-wheelbase trucks with a variety of running boards and frame configurations.

The Atlas PV-15P has a single-point release, set of truck adapters, overhead above ground lift configuration, and symmetric arms

Specs:

Maximum Capacity: 15,000 lbs.
Overall Height 162 3/8" (13' 6 3/8")
Height To Shut Off Bar 152 3/4" (12 8 3/4")
Overall Width 158" (13' 2")
Overall Width (Without Motor) 150 ¼" (12' 6 ¼")
Maximum Lift Height 69 1/8" (5' 9 1/8")
Maximum Lift Height (With Truck Adapters) 79 ¾" (6 7 ¾")
Minimum Pad Height 6 5/8"
Between Columns 122 7/8" (10' 2 7/8")
Column Size 14 3/8" x 7 3/4"
Column Thickness of Steel 2 gauge (.24", 6mm)
Drive Thru 109" (9' 1")
Base of Lift 17 ½" x 20 ½"
Cable Diameter .375"
Shipping Weight (Approx.): 2600 LBS.
Lift Speed (Approx): Ask your salesperson
Motor/Electrical Requirement 2 HP, 220 volt single (1) phase. A 30 amp breaker is recommended.
