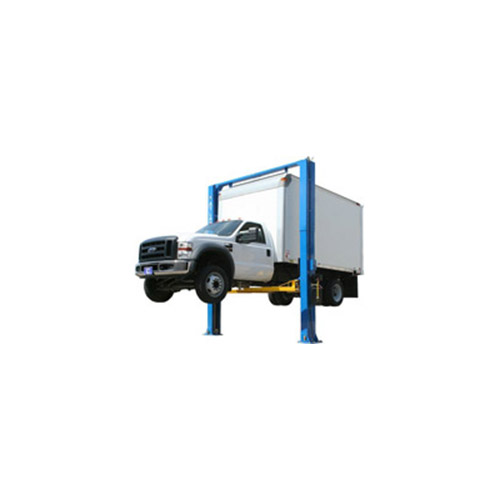

Atlas PV-12P

Description:

The Atlas PV-12P is a commercial-grade lift designed to accommodate both long wheelbase trucks and passenger cars. The distance between the symmetrical columns is almost 123" with a drive-thru space of over 108". The extra distance between the symmetrical columns will allow the widest of vehicles to be lifted. The increased length of the symmetrical arms coupled with the additional height of the included peg style truck adapter set allows the operator to safely raise long-wheelbase trucks with a variety of running boards.

The Atlas PV-12P has a single-point release, set of truck adapters, overhead above ground lift configuration, and symmetric arms.

Specs:

Maximum Capacity: 12,000 lbs.
Overall Height 163 ½"(13' 7 ½")
Height To Shut Off Bar 157"(13' 1")
Overall Width 158" (13' 2")
Overall Width(Without Motor)
150 ¼" (12' 6 ¼")
Maximum Lift Height(With Truck Adapters)
82" (6' 10")
Maximum Lift Height (Without Truck Adapters)
71 ½" (5' 11 ½")
Minimum Arm Height 4 1/2"
Between Columns 122 5/8" (10' 2 5/8")
Column Size 14 3/8" x 7 5/8"
Column Thickness of Steel 2 gauge (.24”, 6mm)
Drive Thru 108 5/8" (9' 5/8")
Base of Lift 17 ½" x 20 ½"
Cable Diameter .375"
Shipping Weight (Approx.): 2,100 LBS.
Lift Speed (Approx):
Ask your salesperson
Motor/Electrical Requirement 2 HP, 220 volt single (1) phase. A 30 amp breaker is recommended.
