Atlas Garage Pro 8,000

Description:

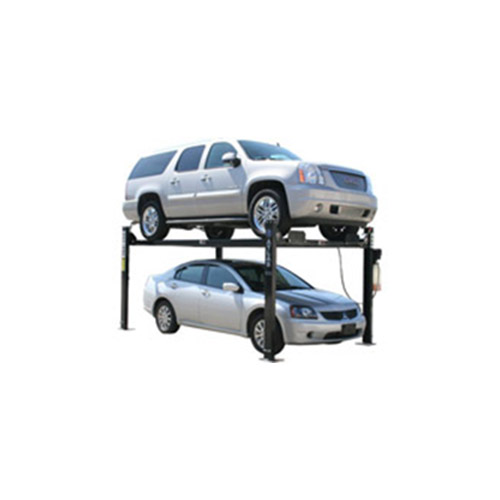

The Atlas Garage Pro 8,000 LB. Capacity 4 post storage/service Lift.

Details:

8,000 lb. Capacity
Powder coat finish
Diamond plated runways
Single point lock release
Caster kit with polyurethane wheels included
Steel approach ramps included
Steel jack tray included
Three plastic drip trays included
Four-wheel stops included
Two rubber wheel chocks included
Perfect for storing or working on vehicles

Specs:

Max Capacity: 8,000 lbs
Lifting Height To Top Of Runway 72" (6')
Clearance Under Runways 67 ½" (5' 7 ½")
Height of Columns 83" (6' 11")
Overall Width (Without Motor) 104 ½" (8' 8 ½")
Overall Width (With Motor) 115" (9' 7")
Overall Length with Approach Ramps 206 ¾" (17' 2 ¾")
Overall Length without Approach Ramps 175 ½" (14' 7 ½")
Approach Ramps 36 3/8" (3' 3/8")
Runway Width 18 ½" (1' 6 ½")
Runway Length 165 ¾" (13' 9 ¾")
Runway Thickness 4 ½"
Width Between Runways 37" (3' 1")
Width Between Runway Rails 31 ½" (2' 7 ½")
Outside Runway to Outside Runway 74 5/8" (6' 2 5/8")
Size of Column 6 1/4" x 3 3/8"
Clearance Between Columns 94 ½" (7' 10 ½")
Length Between Columns 157 ½" (13' 1 ½")
Base of Column 10 1/8" x 11 3/4"
Maximum Wheel Base 153 ½" (12' 9 ½")
Drive Thru (Outside of tire to outside of tire) 80 ½" (6' 8 ½")
Cable Diameter .350"
Gauge Of Steel 6 Gauge (.1875"/ 3/16" / 4.75mm)
Motor 110V
Shipping Weight: 1,720 lbs
