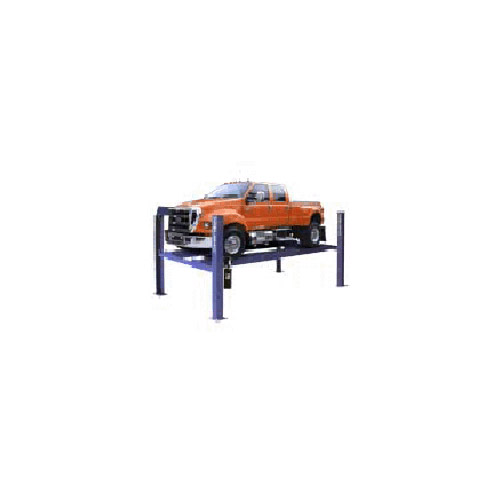

12,000 Lb - 4 Post Lift

12,000 Lb - 4 Post Lift

Description:

Excellent quality 4-post lift system to tackle the largest of jobs.

More Details:

12,000 Lb. Lift capacity
Three different ramp lengths to choose from
Runways include rail-kit for optional accessories
Electric/hydraulic power system
Single hydraulic cylinder mounted underneath runway
Internal “Anti-Sway’ slider blocks in each column
Features heavy-duty ½” aircraft cable
Oversized self-lubricating cable rollers
Rugged 1-3/8” roller axles
Multi-position safety locks in each column
Ramps feature a non-skid surface
Push-button safety release
Runways adjust for different tread widths
Optional drive-thru ramps are available
Optional 6000-pound capacity rolling jacks available

Specs:

Standard Style
Lifting Capacity 12,000lbs. / 5443 Kg.
Lifting Height 74" / 1829 mm
60 Second lifting time
Overall Length 211" / 5959 mm
Overall Width of Columns 131" / 3327 mm
Overall Height of Columns 82" / 2083 mm
Minimum Runway Height 7" / 1778 mm
Runway Width 20" / 508 mm
Width Between Posts 116" / 2946 mm
Max General Wheelbase 168" / 4267mm
Motor 220 VAC / 60 Hz
