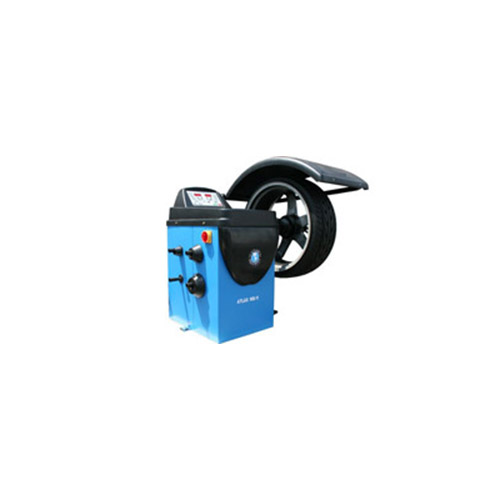

Atlas WB11 Wheel Balancer

Atlas WB11 Wheel Balancer


The Atlas WB 11 is the most popular Atlas wheel balancer that we sell. Low price, dependability and repeatable accuracy make the Atlas WB-11 the backbone of the entire Atlas line of computer wheel balancers. The Atlas WB 11 is designed for those shops balancing 10-20 sets of passenger tires per day.


Automatic positioning where to apply weights.
Automatic and pedal-operated brake.
Automatic start/stop when the hood is lowered/raised.
Static and dynamic balancing modes.
Rapid optimization (OPT)
Exceptional stability in reading the unbalance between planes.
Display in grams or ounces, in mm or inches.
No anchor-down installation needed.


Max Tire Diameter 39"
Rim Sizes (cars and light trucks) 10"-26"
Rim Width 1 ½"-20"
Shaft Size 40mm
Max. Wheel Weight 130 LBS.
Balancing Speed 150 R.P.M
Automatic Data Entry NO
Truck Adapter Set Optional
Shipping Weight 355 LBS.
Motor ¼ HP
Display Standard or Metric
Accuracy 1 g
Weight Position Resolution 1.4 Degrees
Self Calibration YES
