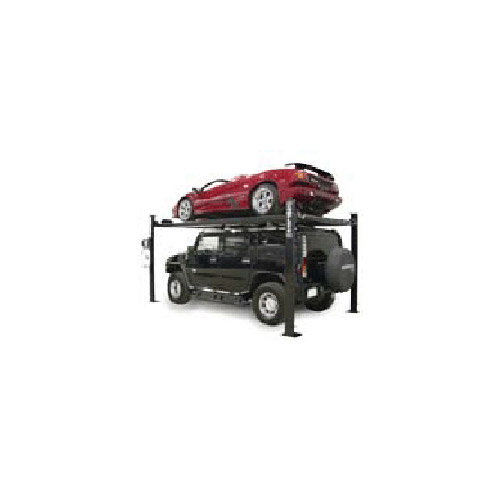

4Post Lift CL 8,000 CSP XLT

Description:

1 ' taller, 1' longer & 5" wider
Hydraulic Cylinder Hidden Under Runway.
Large Post Baseplates.
Heavy-Duty Aircraft Carriers.
10 Automatic Safety Lock Positions.
Removable Wheel Stops. 18 1/2" Wide Runways.
Powder Coated Durable Finish.
Simple Operation & Control.
Detachable 37" Approach Ramps.
One Step Caster Kit.
Three Steel Drip Trays 1 Jack Tray Portable Casters Self-Lubricating UHMW Anti-Sway Slide Blocks.

Specs:

Maximum Capacity: 8,000 lbs.
Overall Height of Posts: 92"
Max. Lifting Height to
Top of Runways: 84"
Max. Clearance Under Runways: 80"
10 Safety Locking Positions:
18", 35", 40", 44 "
48 ", 52 ", 56", 61"
65 ", 70 ", 74 ", 78"
Max. Lifting Height to Top of Runways on Top Lock: 81"
Max. Clearance Under Runways on Top Lock: 77"
Overall Lift Length w/ 37" Approach Ramps: 218"
Overall Lift Length w/out 37" Approach Ramps: 181"
Overall Width Outside of Posts: 109"
Maximum Clearance Between Posts: 98"
Width of Runways: 18.5"
Outside Width of Both Runways: 81"
Clearance Between Runways: 43"
Gauge of Steel: 1/4"
Post Dimensions: 4.5" x 6"
Lifting Speed (Approx): 70 Seconds
Power Unit Electric/Hydraulic: 110V or 220V
Shipping Weight (Approx): 2,000 lbs
